CNC Milling
& Routing

CNC milled and routed parts, panels, templates and profiles in timber, MDF, plywood, acrylic, polycarbonate, PVC and engineering plastics including UHMWPE, PEEK, acetal, HDPE, ABS and nylon.

Application
Areas

More From The
Shop Floor

Custom CNC-Routed Speaker EnclosureA complete client project covering CAD preparation, layered MDF routing, recessed speaker geometry, edge profiling and final vehicle installation.

Custom automotive speaker enclosure

Designed and CNC routed from laminated MDF to suit a custom automotive audio installation. Multiple routed layers were bonded to create the required 40 mm body thickness, then machined with a recessed speaker opening, rounded outer profile and perimeter detailing.

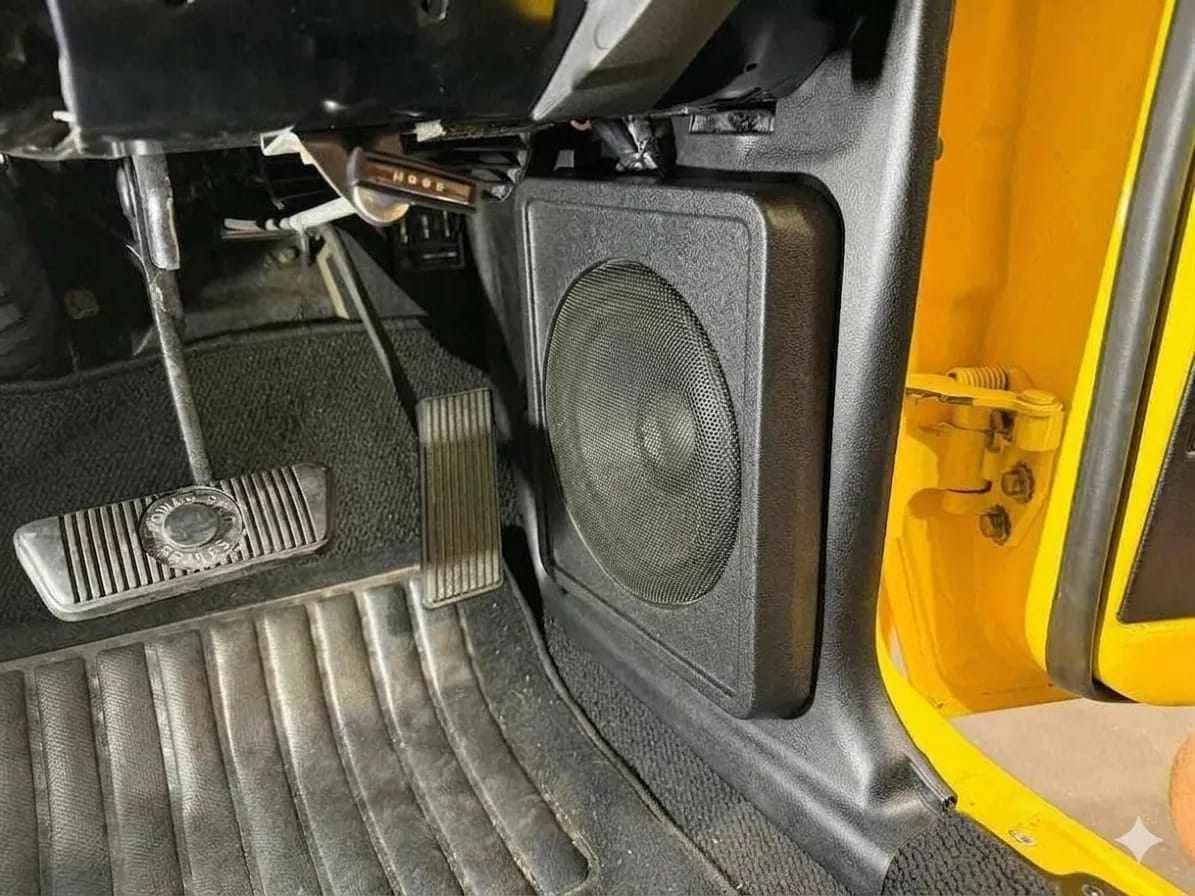

Custom CNC-routed speaker enclosure installed in a vehicle interior
Finished enclosure installed in the client’s vehicle.

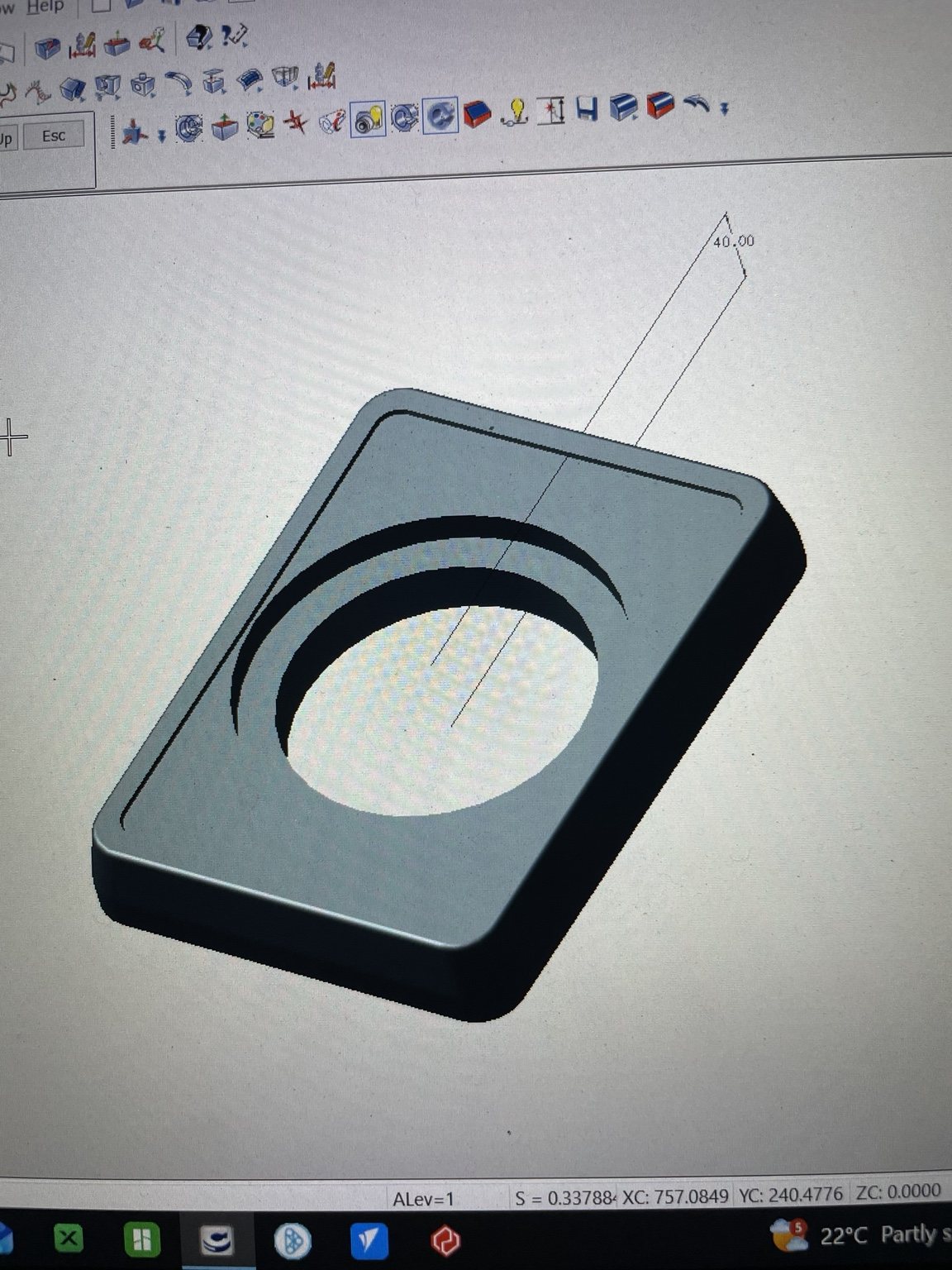

CAD model of the custom speaker enclosure showing the recessed opening and 40 millimetre thickness
CAD model used to define the profile, recesses and overall 40 mm construction.

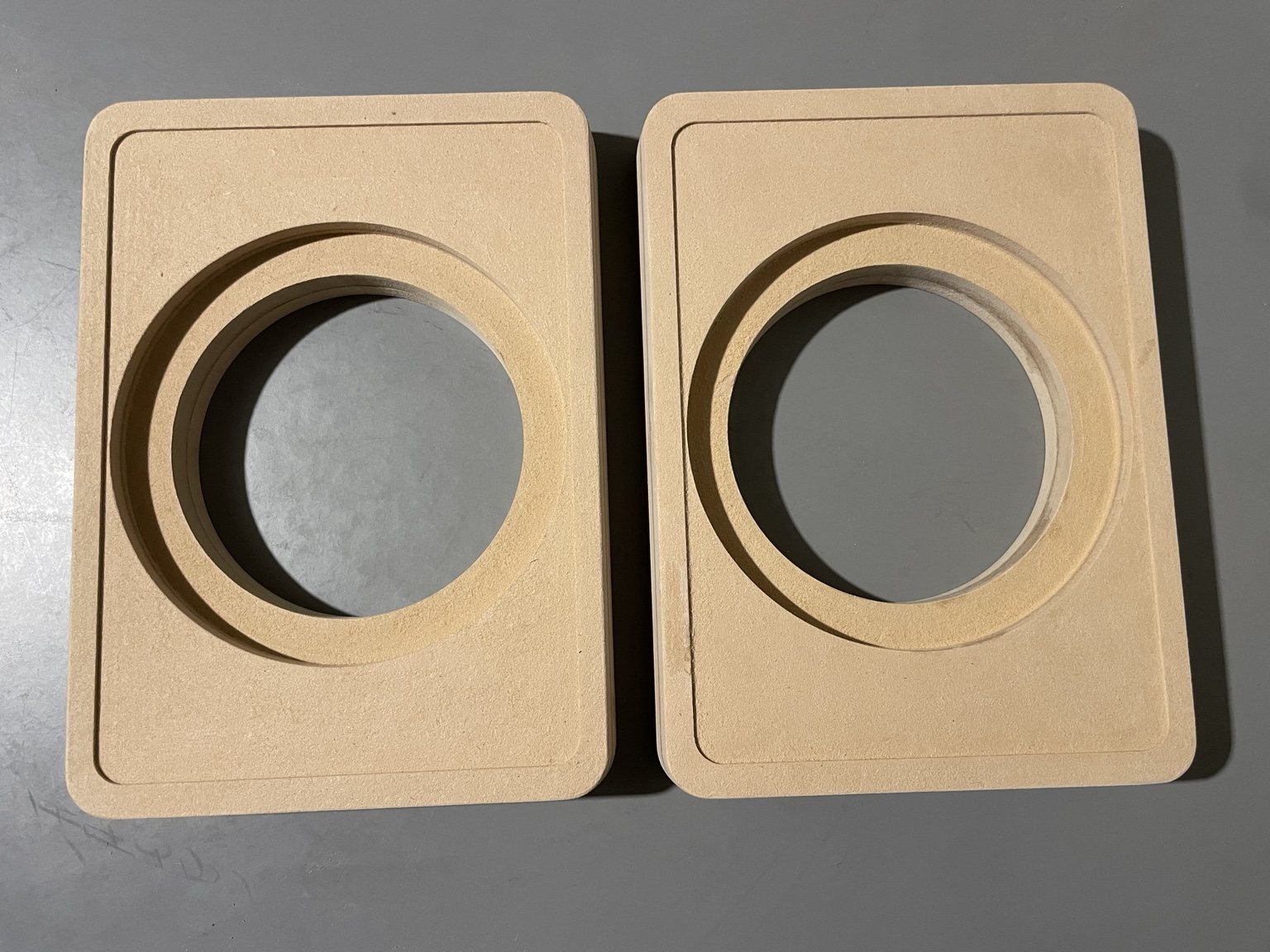

Two completed CNC-routed laminated MDF speaker enclosure panels
Completed routed panels with clean recesses and rounded perimeter edges.

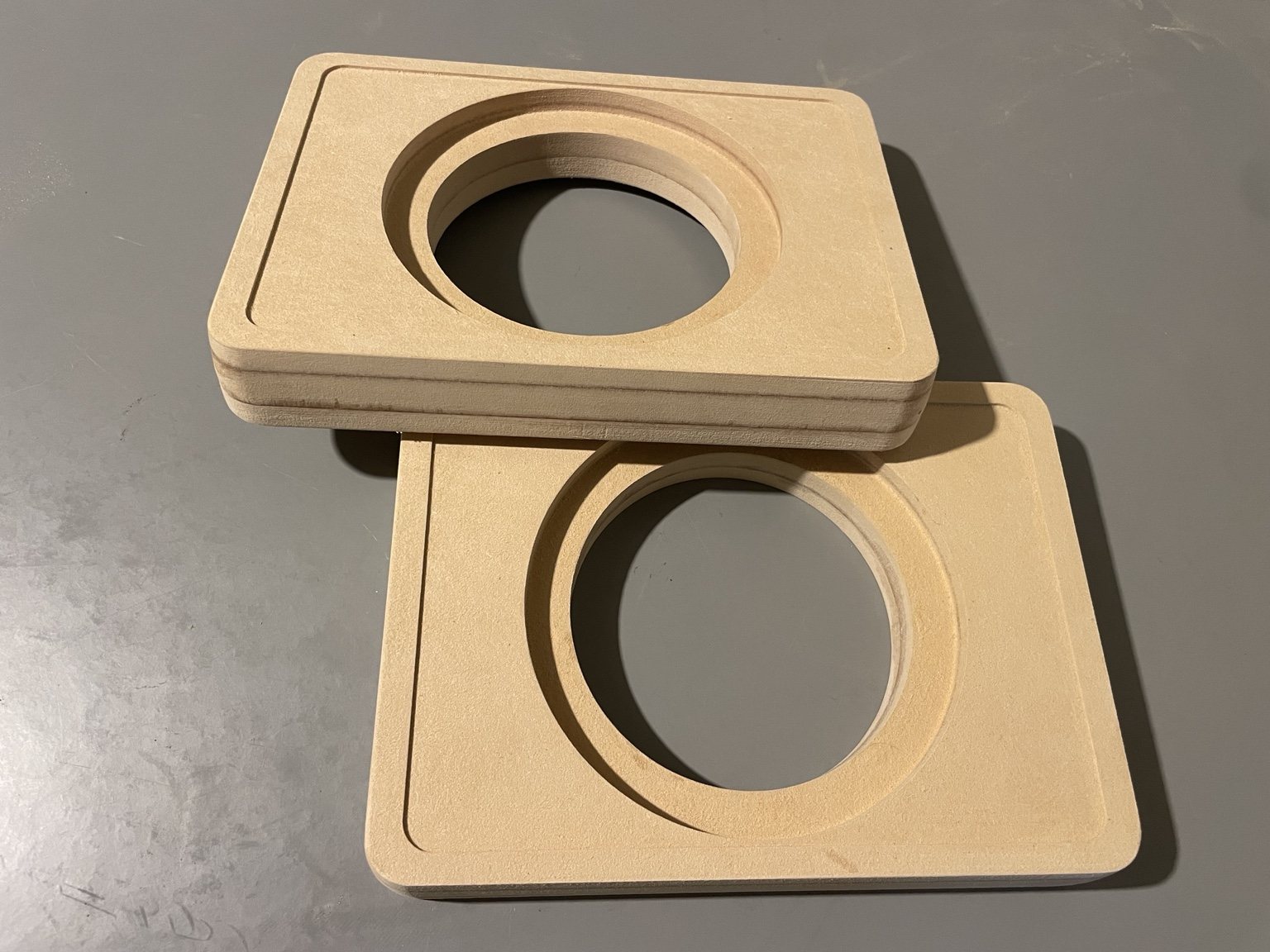

Stacked MDF speaker enclosure panels showing laminated construction
Layered MDF construction visible before final finishing.

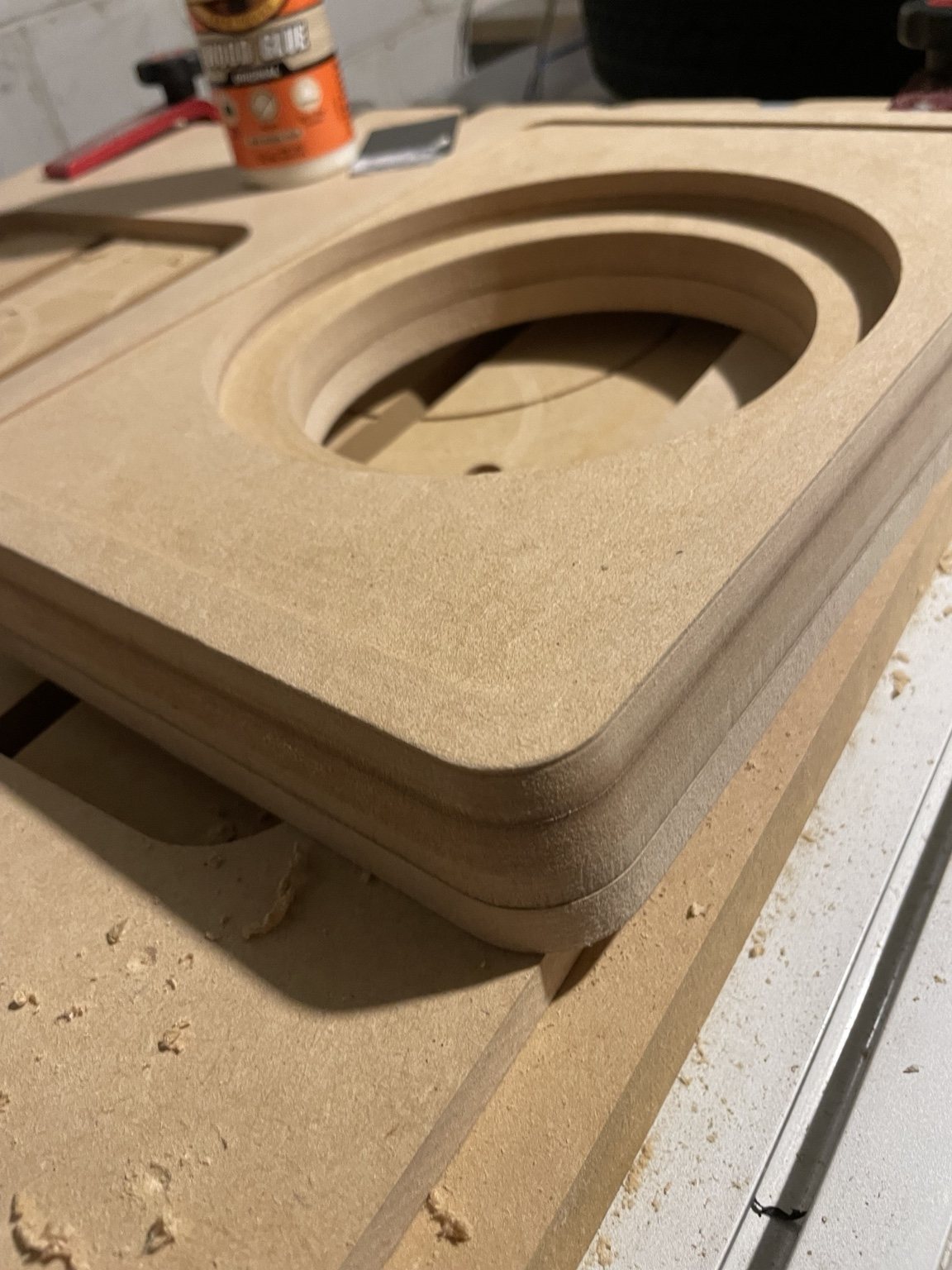

Close-up of CNC routing and laminated MDF layers on the speaker enclosure
Close-up of the routed recesses, laminated layers and edge profile.
  • CAD modelling and toolpath preparation from the client’s installation requirements
  • Layered MDF fabrication to achieve a thick, rigid custom enclosure
  • Accurate pockets, circular cut-outs, edge profiling and repeatable matching parts

Details To
Include

FAQ

What materials can be routed?

Common options include timber, MDF, plywood, acrylic, polycarbonate, acetal, HDPE, ABS, nylon and some aluminium work depending on the job.

Can you make templates and jigs?

Yes. Router templates, drill templates, spacers, guide plates and simple production aids are a strong fit.

Do I need a perfect CAD file?

No. A DXF is best, but a sketch, PDF drawing, photo or rough dimensions can usually be converted into a clean cut file.
