3D Printing
& Prototyping

Application
Areas

• Full product development prototypes and proof-of-concept assemblies from new concepts
• Electronics enclosures, housings, covers, interface panels and fit-check assemblies
• Simple jigs, fixtures and holding tools for workshop or production use
• Test-fit parts before CNC machining, laser cutting or larger-scale production
• Presentation pieces, mockups, custom boxes and low-volume functional plastic components
• Concept models, modular toy systems and interactive physical product prototypes

More From The
Shop Floor

More From The Shop FloorThese examples show full product development and prototyping from scratch — not reverse engineered copies. The compact collage format keeps the visuals cleaner while still showing the development story from concept through to physical prototype.

These projects show concept development, CAD, fit-up testing, enclosure design and physical prototyping in a compact layout without overloading the page.

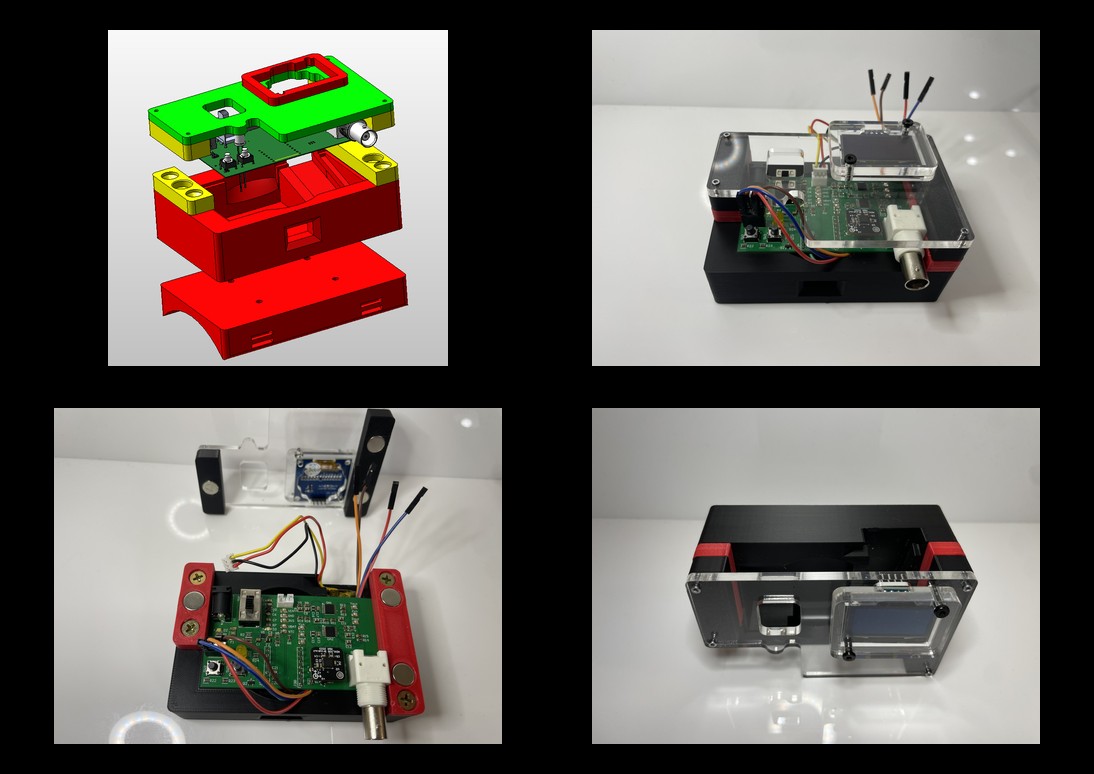

Magnetic PCB enclosure prototype

A clean-sheet prototype enclosure developed around a PCB, screen and connector layout. The case is 3D printed and uses a clear acrylic top/screen cover, fasteners and magnets so the internal layout, access, screen position and assembly method can be reviewed during development. The collage shows the concept-to-prototype journey with the CAD exploded view first, followed by assembled and fit-up prototype photos.

• Completely new product concept — not reverse engineered
• 3D printed enclosure with clear acrylic top/screen cover, fasteners and magnets
• Useful for proving fit, access, assembly logic and component layout before further production

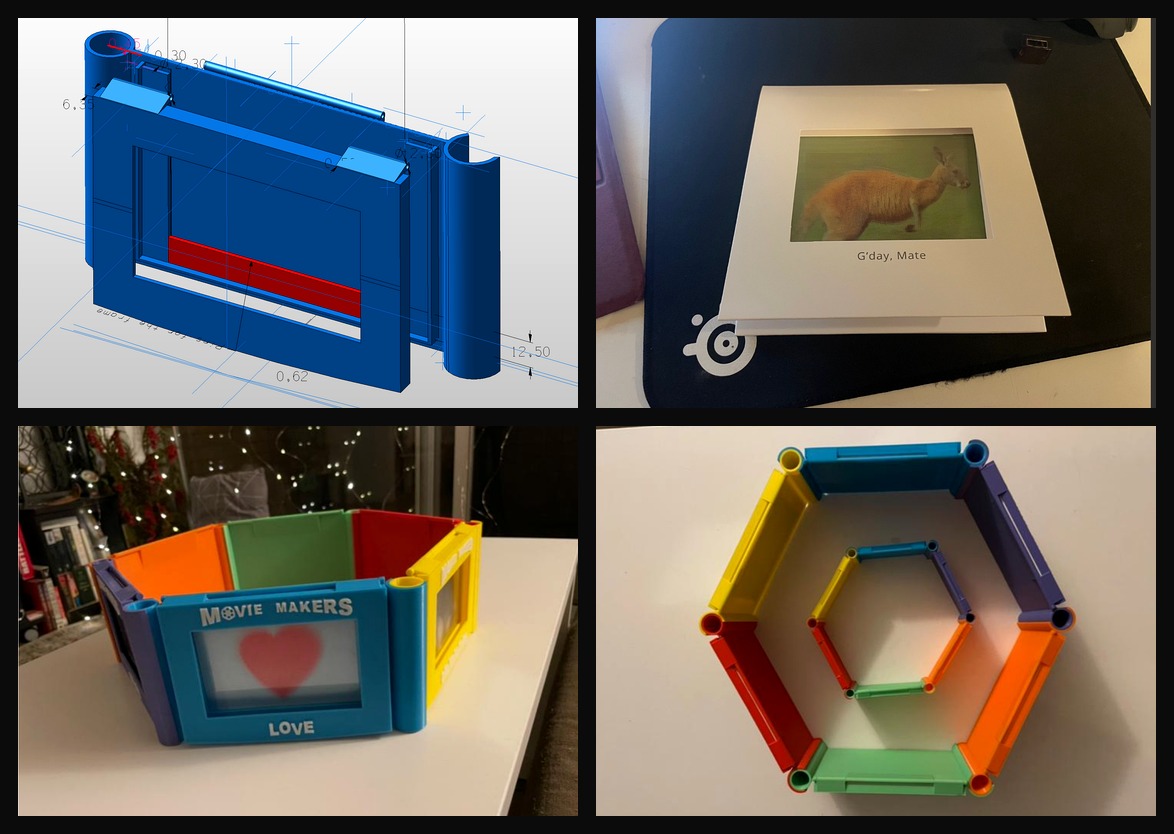

Movie Makers modular collectible toy prototype

A full product-development example taken from ideation through CAD development and into a working physical prototype. The concept focused on designing a physical system that converts a paper product into a modular collectible toy.

• Completely new concept developed from ideation to prototype — not reverse engineered
• Example of designing not just a part, but a full physical product system with moving and modular features
• Useful for testing form, interaction, assembly logic and real-world presentation before production decisions

Details To
Include

• Sketch, concept, STL/STEP file or reference images if available
• What the product or part needs to do
• Any components, electronics or items that must fit inside or around it
• Approximate size, quantity and whether it is a concept model, fit-check or functional prototype
• Strength, finish, branding or temperature requirements
